Delete a Diagram
You can delete diagrams on the Mapping screen.
About this Task
Relational Migrator requires at least one diagram in your project. You must have at least two diagrams before you can delete a diagram.
Steps
1
Navigate to the diagram you want to delete

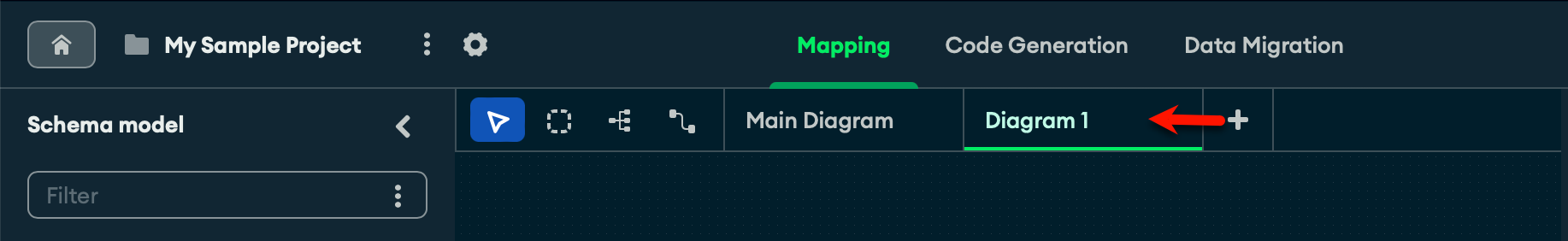

Click the name of the diagram in the Diagram Toolbar to display the diagram.
2
Open the Diagram Properties pane
Click the arrow button to open the Diagram Properties pane.
The Diagram Properties pane displays the active diagram name and notes.
3

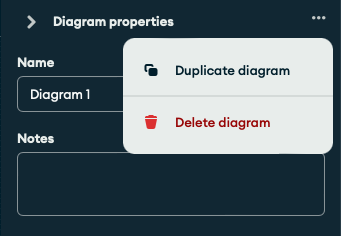

Click the button in the Diagram Properties pane
A menu opens.
4
Click the Delete Diagram option
A confirmation box opens.
5
Click the Delete Diagram button in the confirmation box.
Once you confirm that you want to delete the selected diagram, Relational Migrator deletes the diagram. This step cannot be undone.
